tarpaulin welding machine

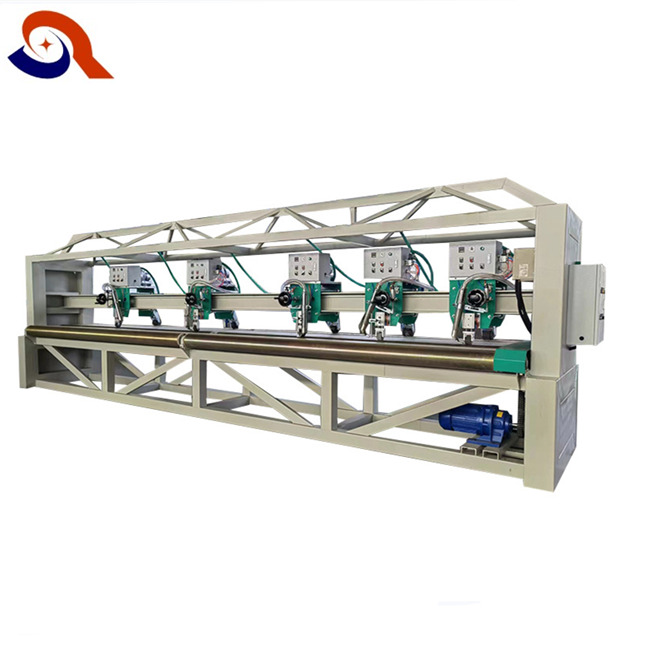

Hot Air Tarpaulin Welding Machine For PP PE PVC Tarp
Hot Air Tarpaulin Welding Machine For PP PE PVC Tarp
Product Descripton
☛It is mainly used to joint rolls together, seam jointing in the middle, edge welding with rope insert.

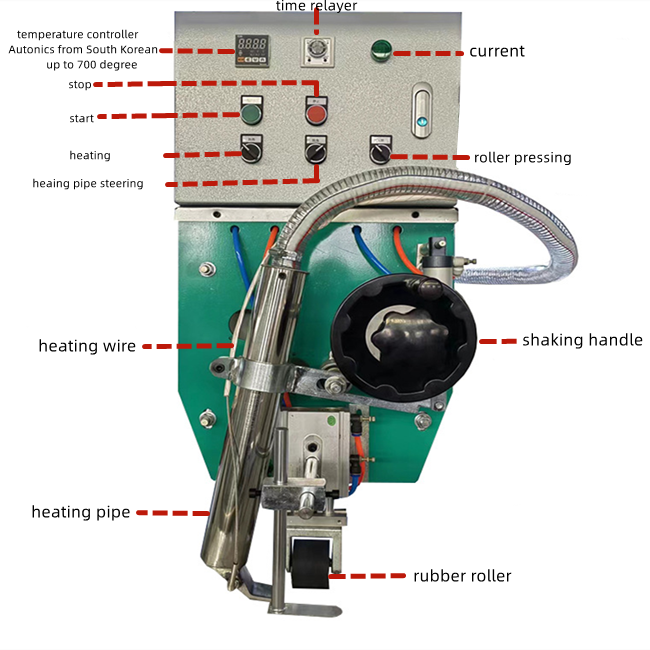

including three parts: the main device(equipped several heating head), foot pedal and roll rack.
☛Core components adopts domestic specific or imported, frame and foot pedal are made of thicken steel, more stable and durable.
☛Effective produce length can be : 2M--10M, before take order, please tell me your intend length.
Brand | XRD |
Model | RD-RH-10 |
Voltage | 380V/50Hz or customized |
Power | 5-8KW |
Air pressure | 0.66-0.8MPa |
Welding length | 2-10m |
Seam width | 30-40mm |
Welding speed | 0-60m/min |
Temperature range | 0-650℃ |
Temperature tolerance | +/-2℃ |
Suitable material | PE PVC Tarpaulin, Tent, Canvas, Air bubble film, Safe net, Shade net |
Control Style | Remote and Manual |
Dimension | X*1.3*2.2m |
Warranty | 1year, except wearing parts(Wearing parts will be additional attached) |
Features:
♦Saves electric energy: Main engine equipped 0.7kw three-phase booster, the decelerate motor is 7.5kw big-power all-in-one motor, and 7.5kw well-known brand frequency converter to keep the whole machine running smoothly.
♦ Advanced heating method: Using hot air welding , single air blower for each heating head.
♦ Imported Autonics temperature controller : Digital high precsion, temperature tolerance is +/-2℃. The adjustable temperature range is 0-650℃, with right speed to meet various materials and thicknesses.
♦Split type and fit type two mode: split mode is designed for large length, the machine is detachable, easy to transportation and installation. Can be left and right independent control, also can be integrated, with one-key switch system, only one second can complete two mode convert.

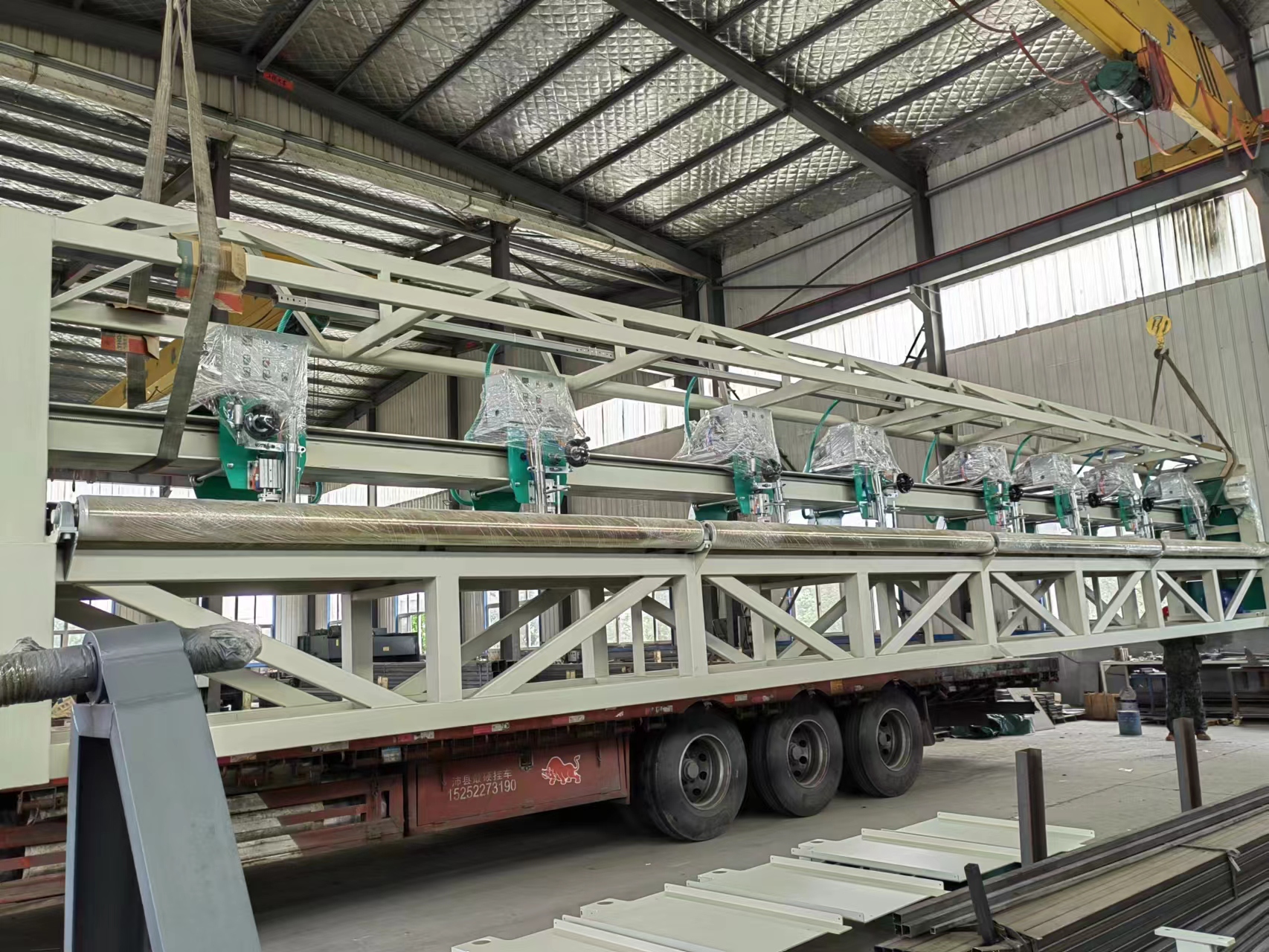

Packing&Shipping
