tarpaulin welding and cutting machine

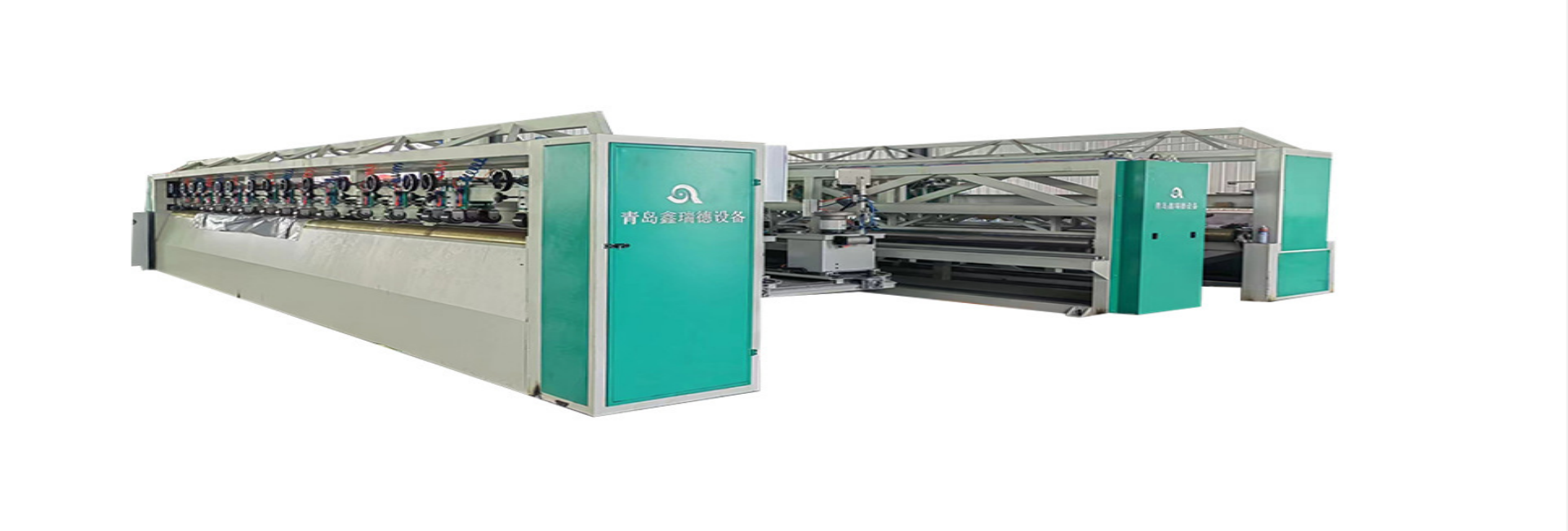

A fully automatic tarpaulin machine (or fully automatic tarpaulin production line) is an integrated industrial system that automates the entire finishing process for tarpaulins. Unlike single-purpose machines that only weld or only install eyelets, this complete line combines multiple functions into one continuous, computer-controlled operation, dramatically reducing manual labor while increasing speed and precision .

How It Works

The process begins with a roll of material fed into the machine. A series of automated stations then perform the following tasks in sequence, all managed by a central PLC or computer system :

1. Unwinding & Tension Control: The raw material is fed from a roll through a tension control system to ensure a smooth, wrinkle-free process .

2. Hemming & Welding: Hot air welders seal the edges and create hems (for rope insertion) . High-frequency or hot air systems fuse the material with precision .

3. Eyeleting (Grommeting): Multiple pneumatic eyelet machines automatically punch holes and press in metal rings at programmable intervals along the edges .

4. Cutting to Length: A cutting device precisely slices the finished tarpaulin to the user-specified length .

5. Optional Folding: Some advanced lines also include an automatic folding station to package the finished product .
